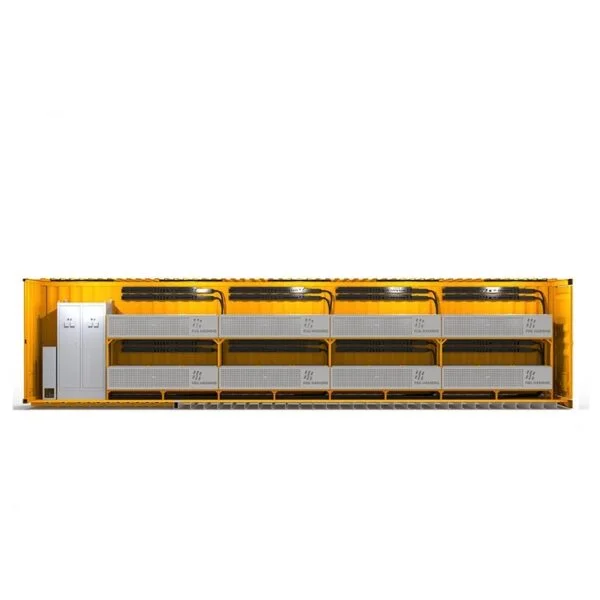

BC40 MEGA – Immersion Cooling Container
$0.00
Specifications
| – |
BASIC |
PRO |
| Dimensions(L*W*H)(mm) | 12192*2438*2896 | 12192*2438*2896 |
| Shipping Weight(T) | 13 | 13 |
| Operating Weight(T) | 23 | 23 |
| Coolant Capacity (L) | 14000 | 14000 |
| Cycle Mode | Single loop | Single loop |
| Miner Capacity | 384 S19/M50 | 384 S19/M50 |
| Tank Quantity | B24 Tank*16 | B24 Tank*16 |
| Operating Temperature(℃) | -25°C ~55℃ | -25°C ~55℃ |
Electrical Performance (- /✓ optional/standard)
| – |
BASIC |
PRO |
| Input Voltage and Frequency | 3-phase 350-480V 50/60Hz | 3-phase 350-480V 50/60Hz |
| Max Power Load (kW) | 1693 | 2822 |
| Output Voltage and Frequency | Single-phase 200-277V 50/60Hz | Single-phase 200-277V 50/60Hz |
| Safety Certification | CE/UL | CE/UL |
| Operating Power(kW) | 100 | 134 |
| Power Distribution Cabinets(A) | 1200Ax1 *2 | 1000Ax2 *2 |
| PDU | Smart PDU * 16 | Smart PDU * 32 |
| Inlet Cable | The inlet cables can withstand high-voltage of above 600V, with the following requirements per phase:L1 4-wires cable 3/0AWG(85mm x4) x1 *2L2 4-wires cable 3/0AWG(85mm x4) x1 *2L3 4-wires cable 3/0AWG(85mm x4) x1 *2N 4-wires cable 3/0AWG(85mm x4) x1 *2PE 1-wire cable 3/0AWG(85mm) x1 *2 | The inlet cables can withstand high-voltage of above 600V, with the following requirements per phase:L1 4-wires cable 3/0AWG(85mm x4) x2 *2L2 4-wires cable 3/0AWG(85mm x4) x2 *2L3 4-wires cable 3/0AWG(85mm x4) x2 *2N 4-wires cable 3/0AWG(85mm x4) x2 *2PE 1-wire cable 3/0AWG(85mm) x2 *2 |
| Smart Meter | – | ✓ |
| Integrated Wiring | ✓ | ✓ |
| Network | ✓ | ✓ |
| UPS | – | – |
| SPD | ✓ | ✓ |
Cooling Capacity
| – |
BASIC |
PRO |
| Cooling Capacity(kW) | 1440 | 1920 |
| Cooling Type | Closed water cooling tower
or Dry cooler |
Closed water cooling tower
or Dry cooler |
| Inlet Temperature(℃) | 45 | 45 |
| Outlet Temperature(℃) | 60 | 60 |
| Design Reference Temperature (℃) | 35 | 35 |
