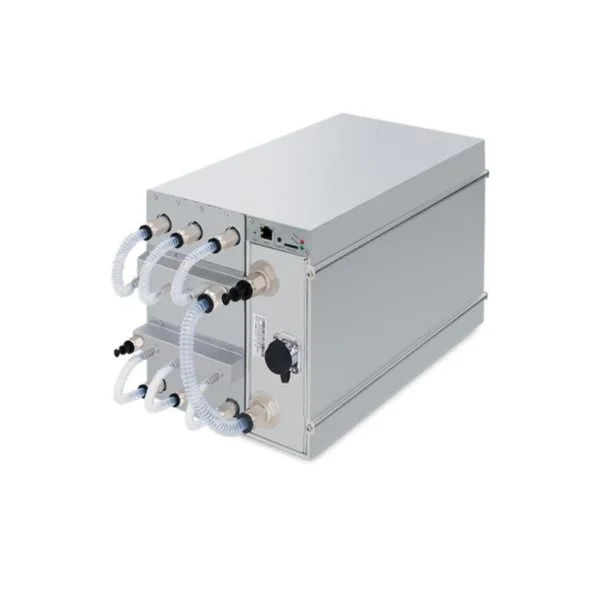

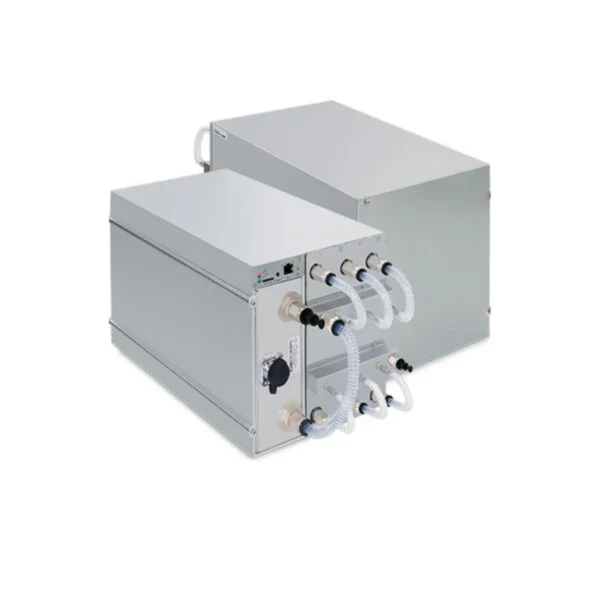

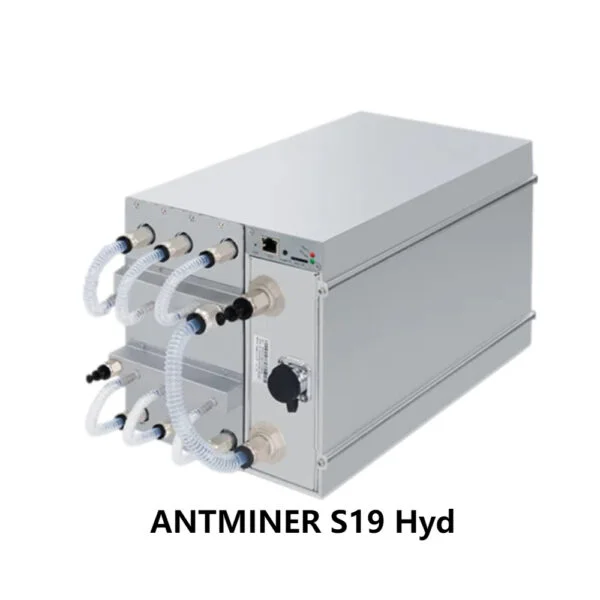

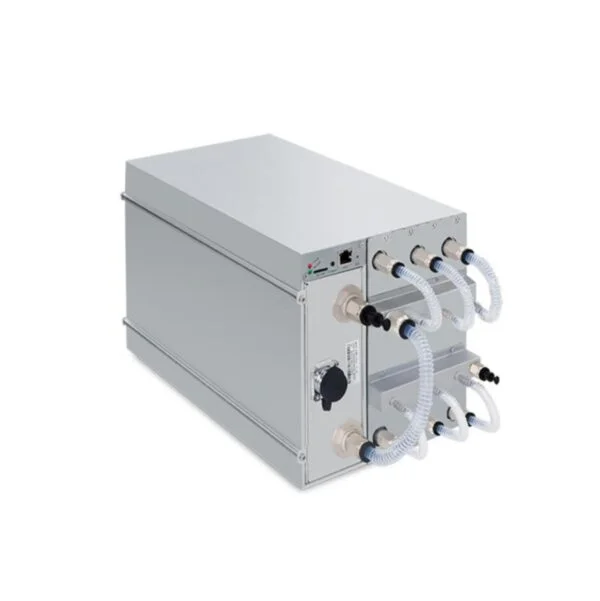

BITMAIN Antminer S19 Hyd 132/138.5/145/151.5/158T

Model Antminer S19 Hyd from Bitmain mining SHA-256 algorithm with a maximum hashrate of 132Th/s to 158Th/s for a power consumption of 4553W to 5450W.

Categories: ,


(1-1) Inlet water temperature

(2-1) Caution: Wrong input voltage may probably cause miner damaged


Product GlanceValue
VersionS19 Hyd
Crypto Algorithm/CoinsSHA256/BTC/BCH
Hashrate, TH/s132/138.5/145/151.5/158
power on wall@25℃, Watt4553/4778 /5002/5226/5450
power efficiency on wall @25°C, J/TH34.5 ± 5%


Detailed CharacteristicsValue
Power Supply
Power supply AC input voltage, Volt (1-1)342~418
Power supply AC Input Frequency Range, Hz47~63
Power supply AC Input current, Amp(1-2)30
Hardware Configuration
Network connection modeRJ45 Ethernet 10/100M
Server Size (Length*Width*Height, w/o412*197*209
package), mm(2-1)
Server Size (Length*Width*Height, with   package), mm570*316*430
Net weight, kg (2-2)15.8
Gross weight, kg17.7
Environment Requirements
Operation temperature, °C0~40
Inlet water temperature °C20-40
Water flow L/min8 ± 10%
Water pressure bar≤3.5
Storage temperature, °C -20~70
Operation humidity(non-condensing), RH10~90%


Additional information

| Purchasing Guidelines

  1. The shipping costs, customs charges, and taxes(if any) are not included in the retail price shown above. Welcome to ask for details for different order.
    For some countries,DDP service (PRICE including the custom cost and shipping charge) also can be provided.
  2. The pictures shown are for reference only; the final shipment version shall prevail.
  3. We kindly request your understanding that once an order or preorder has been placed with BITMARS Group, it is considered final and cannot be canceled.

| Shipping Details

  1. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMARS has received full payment.
  2. For the pre-order, the specific delivery date of which is subject to the factory. If there is any update on the schedule, BITMARS would keep the buyer fully informed.
  3. Clicking here to download Certificates of Conformity and find additional information on customs clearance for BITMAIN products.

| Warranty

  1. Kindly note that for new brand 100% miners,warranty is 12 months/6 months (up to different policy from factory ) since the production from factory.
  2. BITMAIN will cover shipping costs when shipping a replacement unit within the warranty period.
  3. If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without BITMAIN’s prior consent, BITMAIN will not be liable for any damage arising therefrom.
